Automotive Tachometer (CB24232E)

Details
Written by: Newton C. Braga

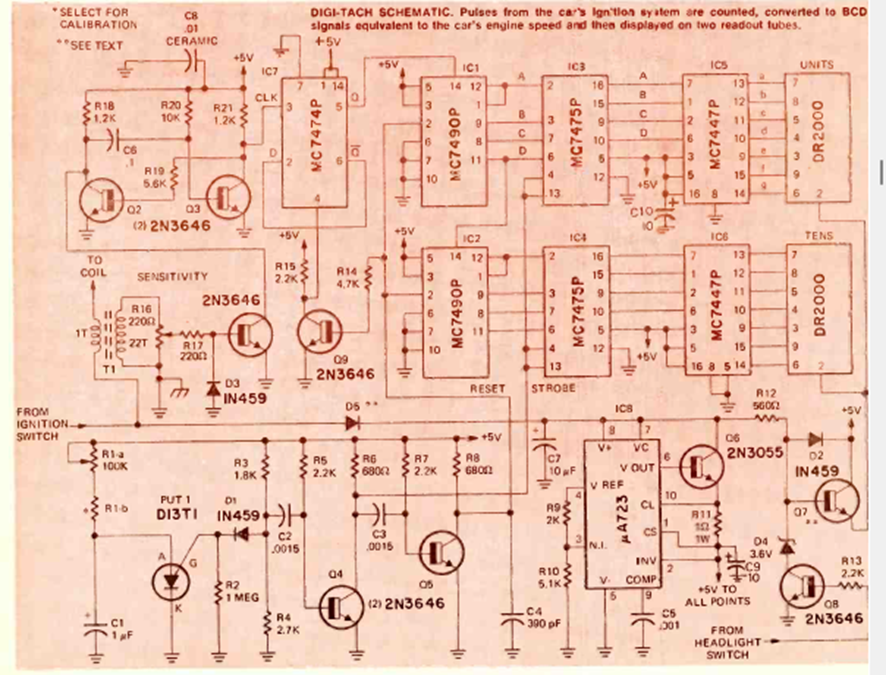

This circuit was found in the April 1973 issue of Radio Electronics magazine. Using TTL technology, it was recommended for vehicles of the time. The circuit was connected to the contact breaker.
