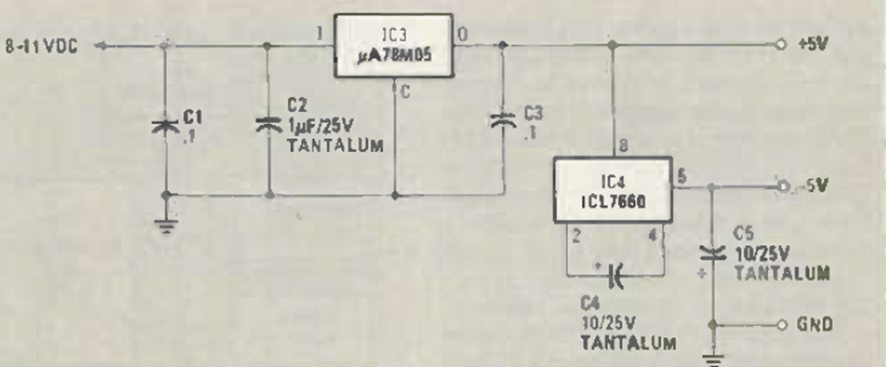

Dual 5 V power supply (CB24805E)

Details
Written by: Newton C. Braga



We found this circuit in the June 1984 issue of Radio Electronics magazine. The circuit uses an integrated circuit that is not very common today.
