Voltage Test 741 (CB24726E)

Details
Written by: Newton C. Braga

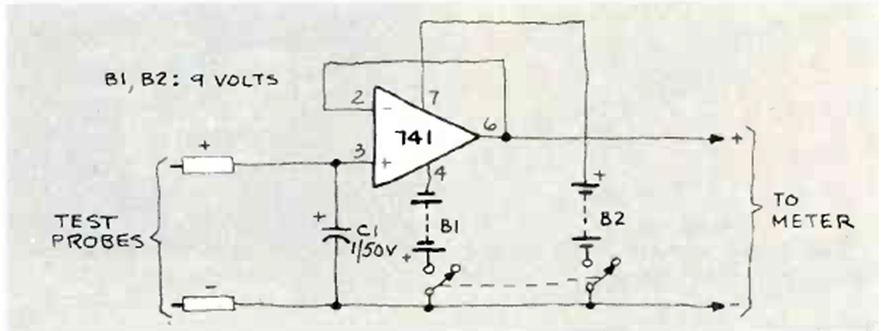

The purpose of this circuit is only to increase the input resistance of a multimeter, since there is no voltage gain. The batteries are 9 V and operational equivalents can be used.




| Clique na imagem para ampliar |
