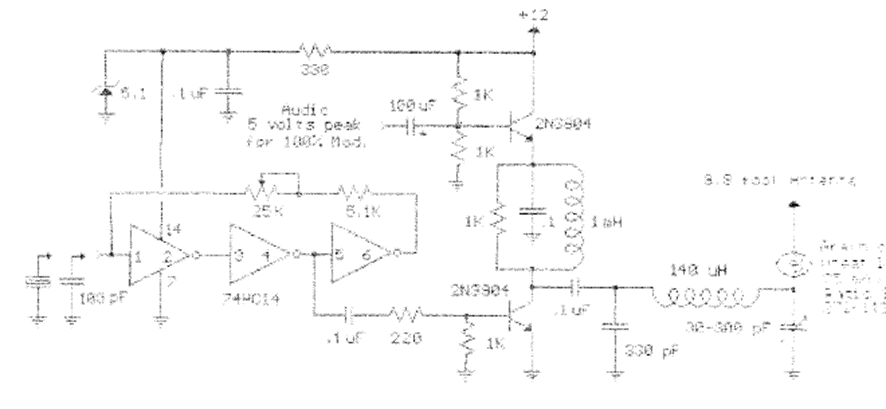

The quiescent current of the small transmitter is around 20 mA. The transmission frequency depends on the coil and can be between the medium wave and short-wave bands. The circuit is from documentation from the 1980s. The power is around 100 mW
| Clique na imagem para ampliar |
