Hybrid Starter Circuit (CB24218E)
- Details
- Written by: Newton C. Braga

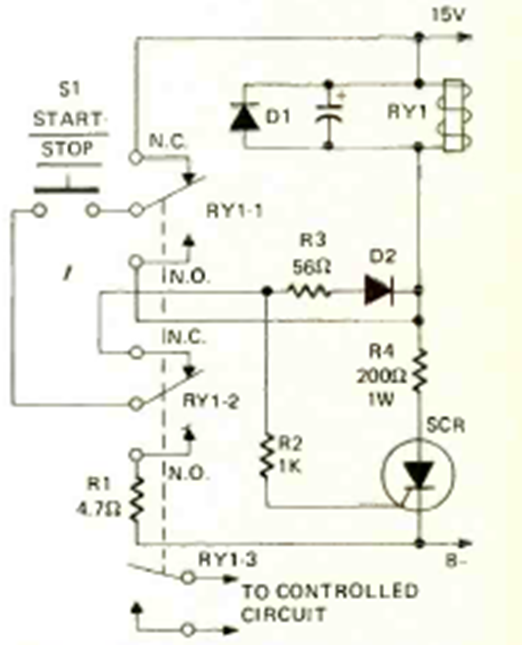

For bench use, this circuit functions as a bistable safety switch. The circuit is from a Radio Electronics magazine from November 1972. The SCR may be a 106 series.
