Repellent with 4011 (CB24932E)

Details
Written by: Newton C. Braga

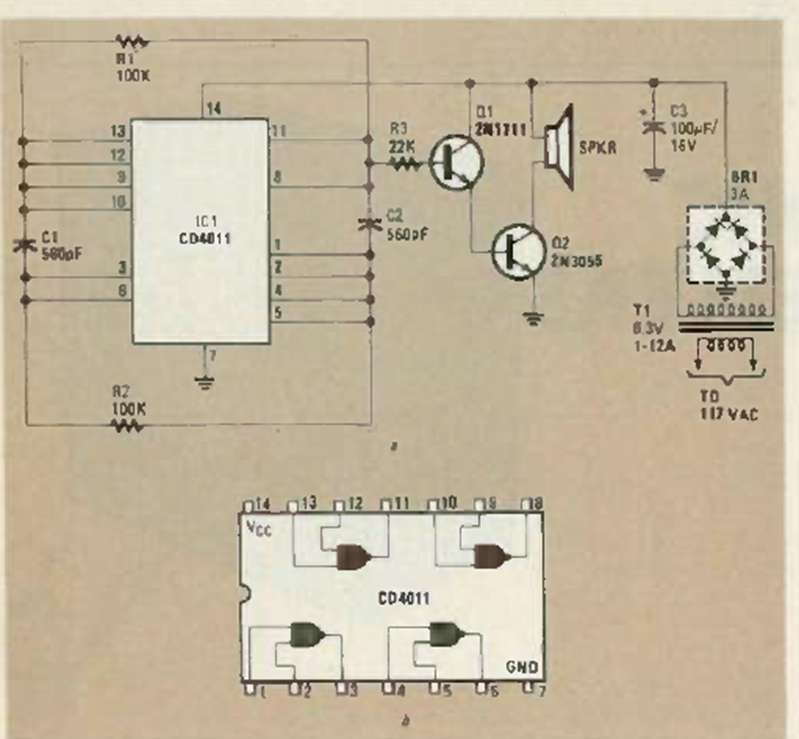

This circuit has more power than the previous one, since it includes a powerful transistorized stage. The circuit is from Radio Electronics from July 1985. It includes the power supply.
