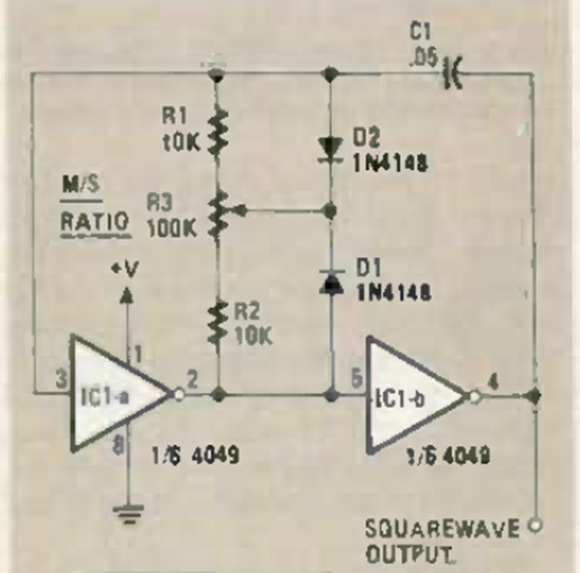

This circuit with duty cycle adjustment was found in November 1984 Radio Electronics magazine. The base frequency is given by C1, the duty cycle adjustment ranges from 1:11 to 11:1.
4049 Astable with Duty Cycle (CB24861E)
- Details
- Written by: Newton C. Braga
