Digital Thermometer (CB24793E)

Details
Written by: Newton C. Braga

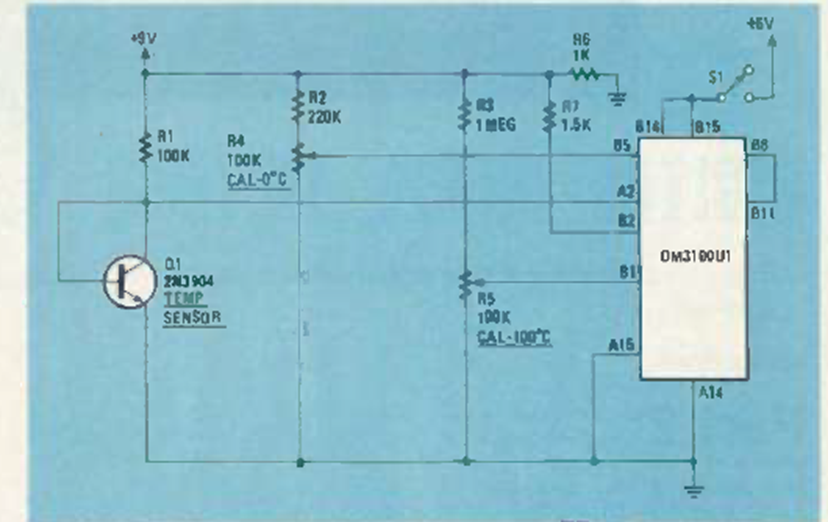

This circuit was found in the March 1984 issue of Radio Electronics magazine. The sensor is a transistor. The module is a common type at the time.




| Clique na imagem para ampliar |
