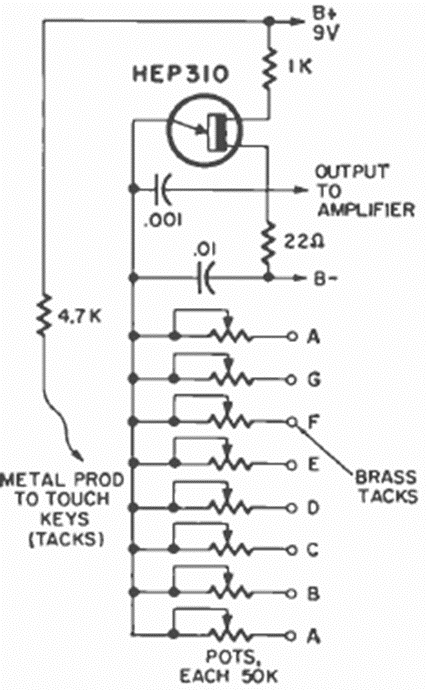

Simple electronic organ (CB24118E)

Details
Written by: Newton C. Braga



Circuits of the same type can be found in this section from various publications. This one is from a Radio Elecronics magazine from April 1971. It should be connected to the input of an amplifier.
