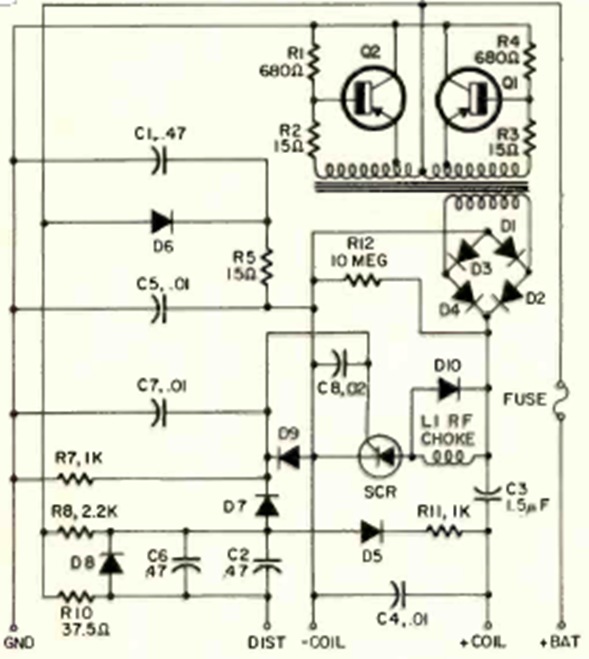

Capacitive discharge ignition (CB24182E)

Details
Written by: Newton C. Braga



This circuit is from a Radio Electronics from April 1972. The circuit uses power transistors of the time and is used in cases with contact breaker cars.
