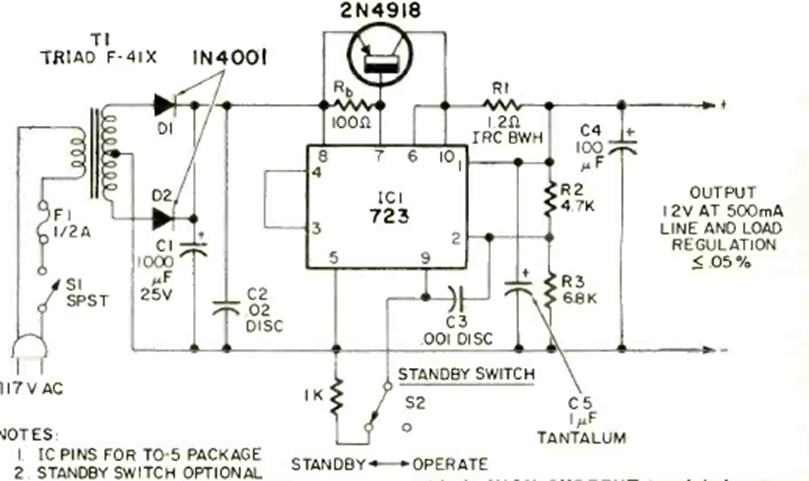

Using the integrated circuit 723 we found this power supply in an article in the magazine Radio Electronics from August 1971. The transistor may be a BD136 equipped with a heat sink.
| Clique na imagem para ampliar |
12 V x 500 mA power supply (CB24154E)
