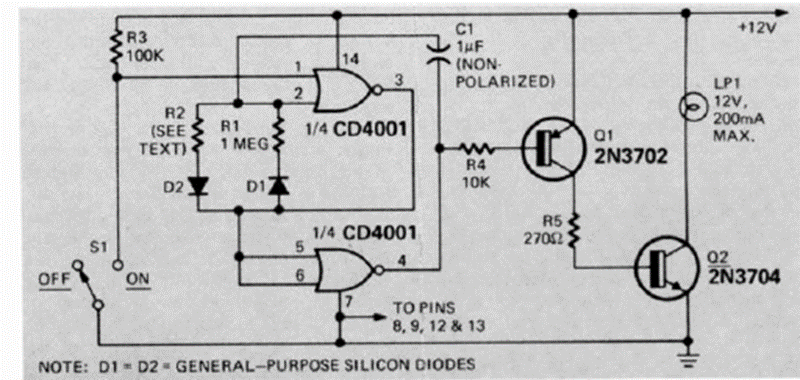

This switch circuit for an incandescent lamp can have its duty cycle programmed by the relationship between R1 and R2. The circuit is from a Radio Electronics from December 1974. Q2 can be a power transistor for larger lamps.
