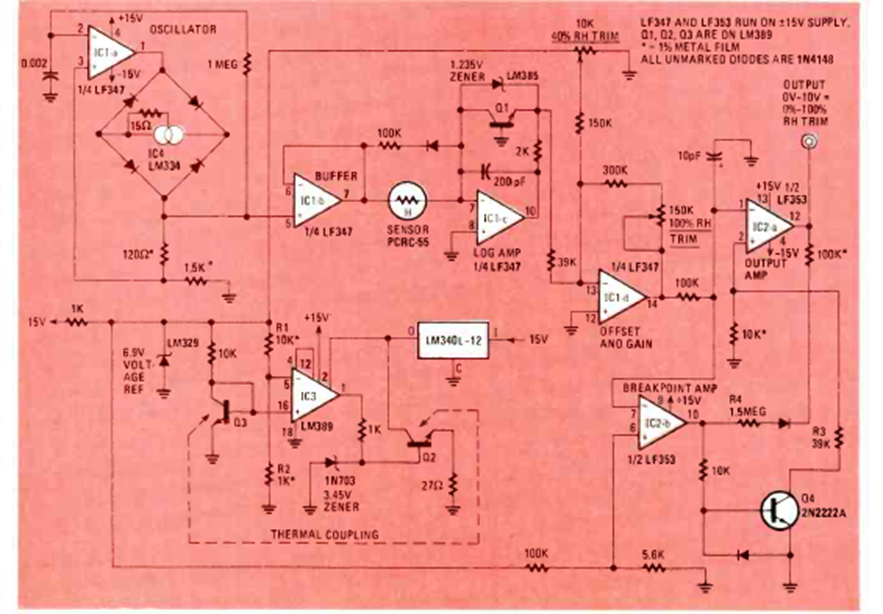

This circuit was found in the December 1982 Radio Electronics magazine. The components are of types that are still commonly found. The power supply is not included.
| Clique na imagem para ampliar |
Relative Humidity Meter (CB24728E)
- Details
- Written by: Newton C. Braga
