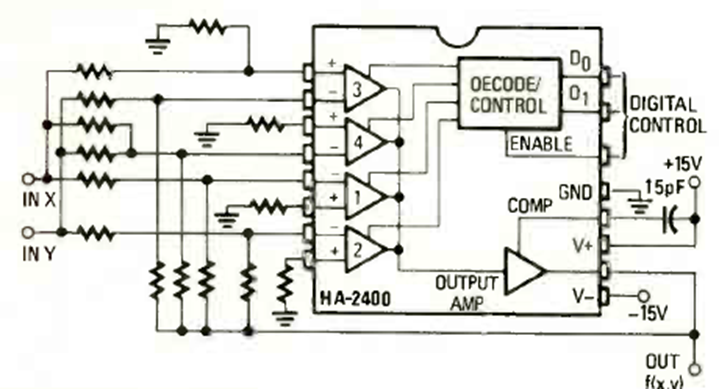

We found this circuit in the March 1980 Radio Electronics magazine. The circuit used is the HA2400 released at the time. The power supply must be symmetrical.
| Clique na imagem para ampliar |
Adder and Subtractor (CB24623E)
