Bistable (CB24289E)

Details
Written by: Newton C. Braga

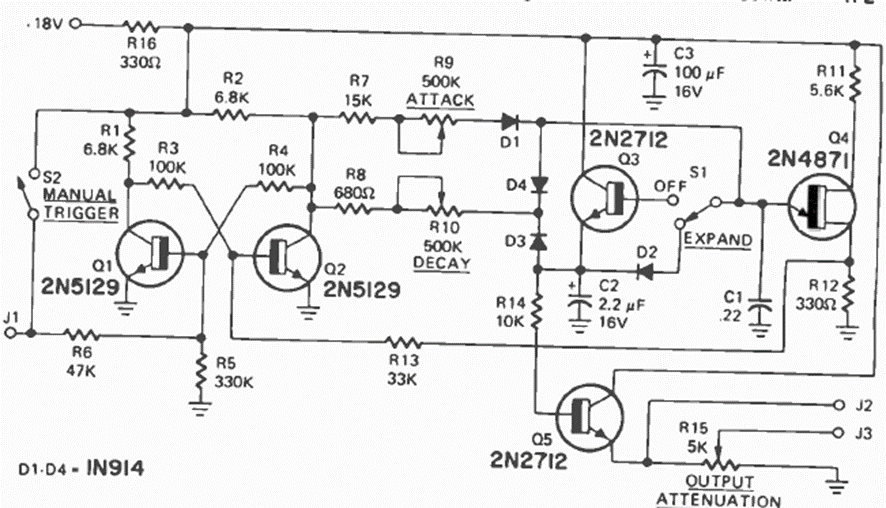

This well-designed bistable configuration is for educational purposes. We found it in the September 19873 Radio Electronics magazine. The transistors are types from that time.
