Car Amplifier (CB24019E)

Details
Written by: Newton C. Braga

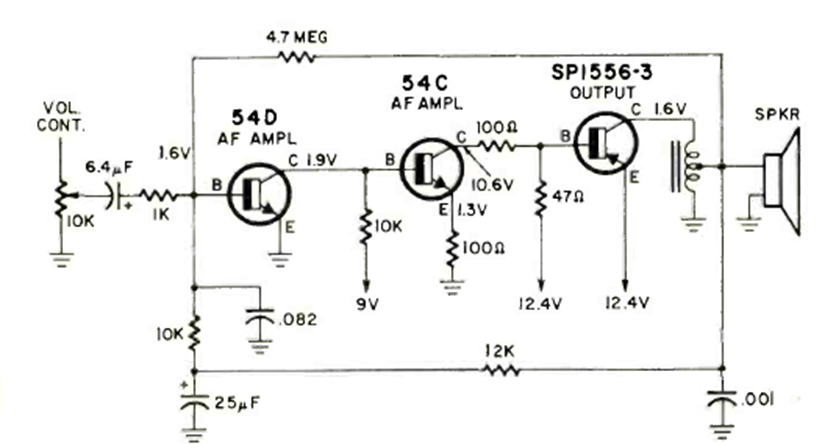

This amplifier stage was equipped with a Motorola radio from the 70s. The transistors were from that time and the single transistor output used an autotransformer.
