Found elsewhere in this section, this circuit is from the April 1971 Radio Electronics magazine. Note that there is a 2 V drop across the SCR when it is conducting when the relay is selected.

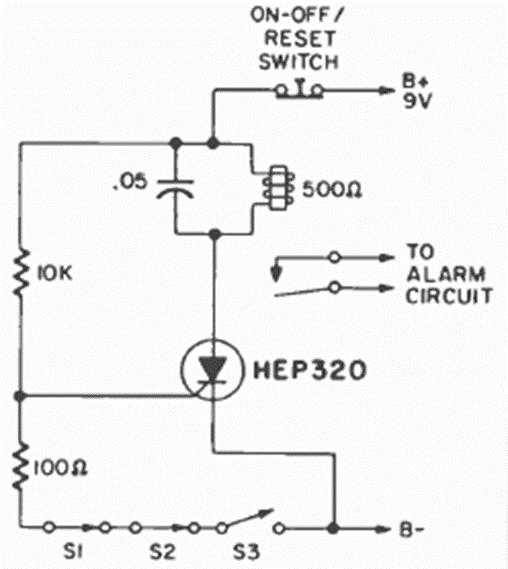

Simple Alarm with SCR (CB24114E)
- Details
- Written by: Newton C. Braga
