27 MHz Oscillator (CB24983E)

Details
Written by: Newton C. Braga

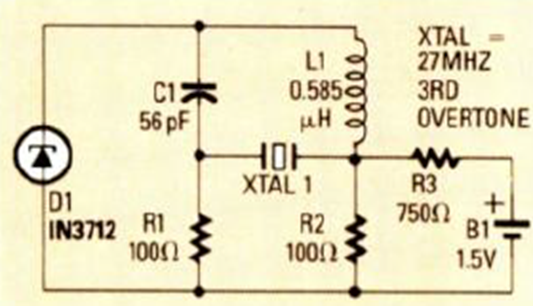

This tunnel diode oscillator was found in July 1986, Radio Electronics magazine. Note the low supply voltage.
