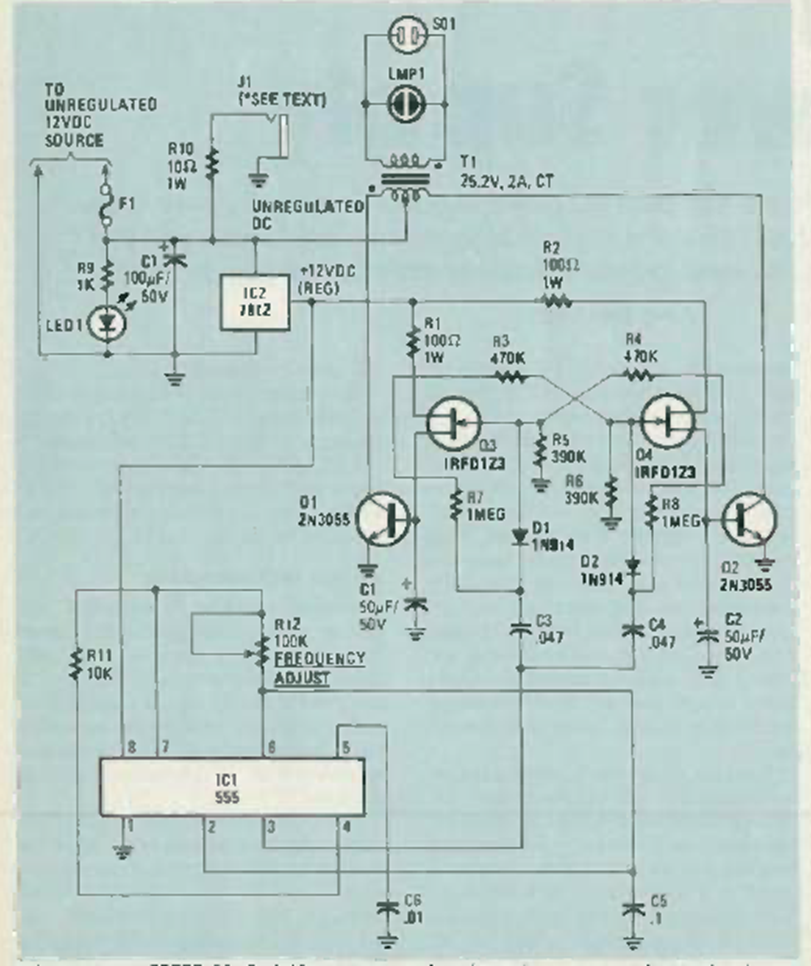

This UPS circuit was published in the March 1985 issue of Radio Electronics magazine. The components used are still common, although some may be difficult to obtain.
| Clique na imagem para ampliar |
No Break (CB24888E)
- Details
- Written by: Newton C. Braga
