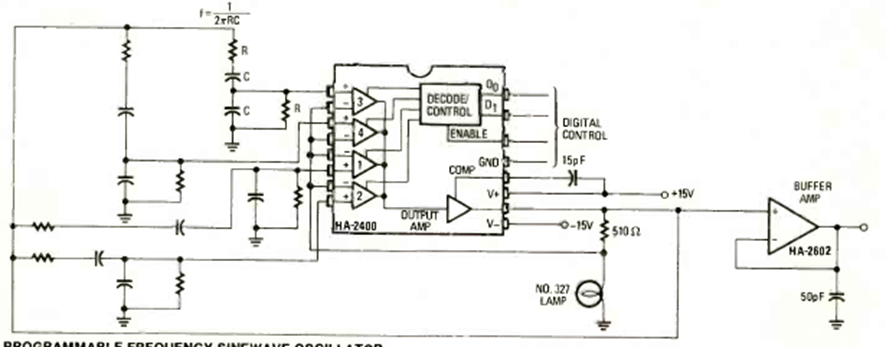

This circuit was found in the March 1980 issue of Radio Electronics magazine. It is based on the HA2400 IC, which must be powered by a symmetrical source. The maximum frequency is 10 MHz, depending on the external network components.
