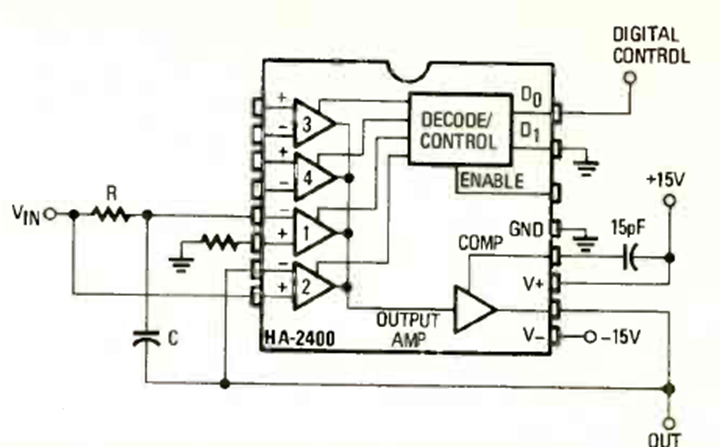

This circuit was found in the March 1980 issue of Radio Electronics magazine. It is based on the newly released LH2400. The circuit must be powered by a symmetrical power supply.
| Clique na imagem para ampliar |
Ramp Generator and Integrator (CB24625E)
- Details
- Written by: Newton C. Braga
