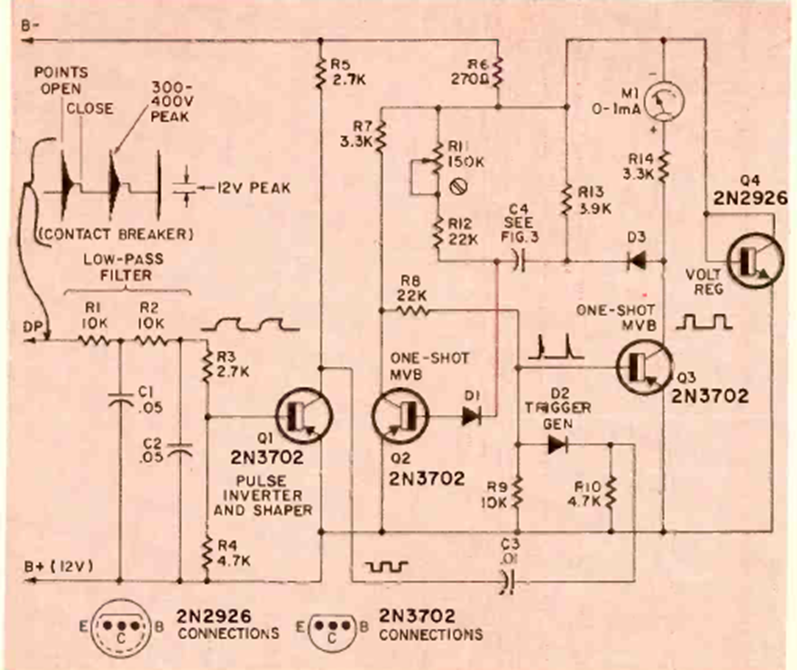

This circuit was found in the April 1970 Radio Electronics magazine. The dual function circuit uses 4 transistors and is connected to the vehicle's contact breaker.
| Clique na imagem para ampliar |
Tachometer and Speed Alarm (CB24018E)
- Details
- Written by: Newton C. Braga
