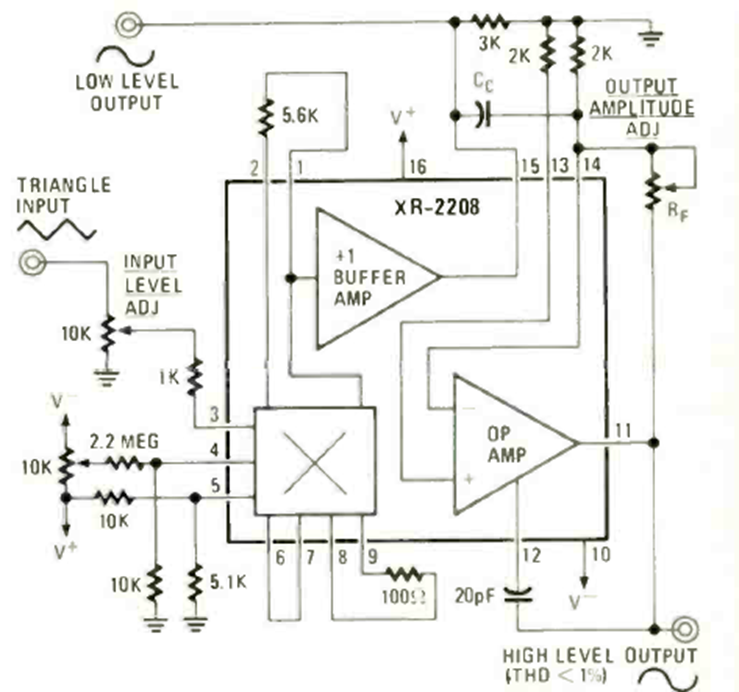

This circuit for frequencies up to a few tens of megahertz was found in the April 1978 issue of Radio Electronics magazine. The power supply must be symmetrical.
| Clique na imagem para ampliar |
Triangle to sinusoidal converter XR2208 (CB24549E)
