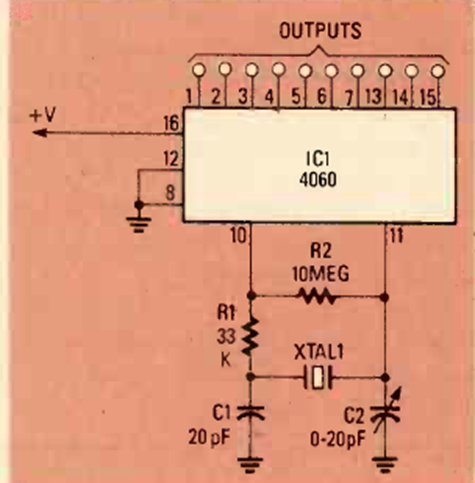

This XTAL oscillator was found in the January 1986 issue of Radio Electronics magazine. Any gate that can be connected as an inverter will work. The frequency depends on the crystal.
CMOS Crystal Oscillator (CB24939E)
- Details
- Written by: Newton C. Braga
