Telephone control in use (CB24431E)

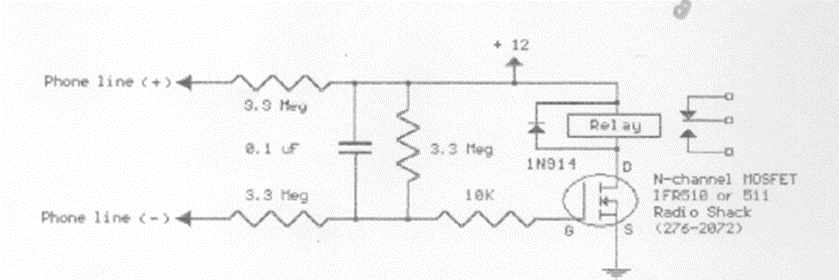

This circuit for old analog telephones is from period documentation. It controls a relay that can be used to turn the extension on and off.

| Clique na imagem para ampliar |

Gain 100 Operational 741 (CB13537E)
This traditional configuration is from a 1976 publication, showing that nothing has changed since...
Power Control (CB24109E)
This circuit is from a Radio Electronics from February 1971. The SCR is load controlled and the...
Timer with Triac (CB19632E)
This timer triggers high-powered loads powered by the power grid. Times are given by C1 and the...
