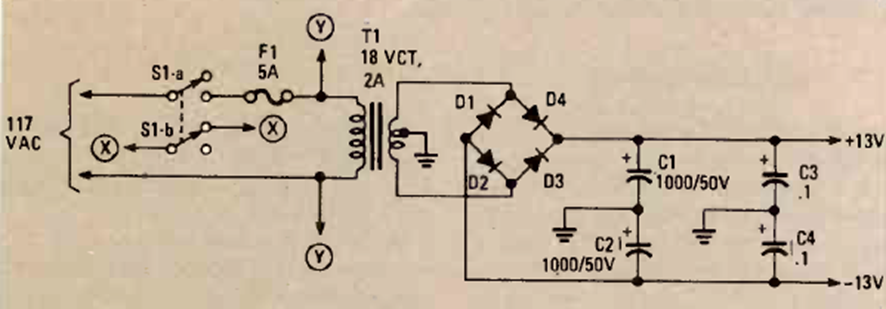

This unregulated symmetrical power supply was found in the August 1982 issue of Radio Electronics magazine. The circuit uses a 2 A transformer, but others can be used depending on the maximum output current desired.
| Clique na imagem para ampliar |
13 V Symmetrical Power Supply (CB24711E)
- Details
- Written by: Newton C. Braga
