UHF Amplifier (CB24689E)

Details
Written by: Newton C. Braga

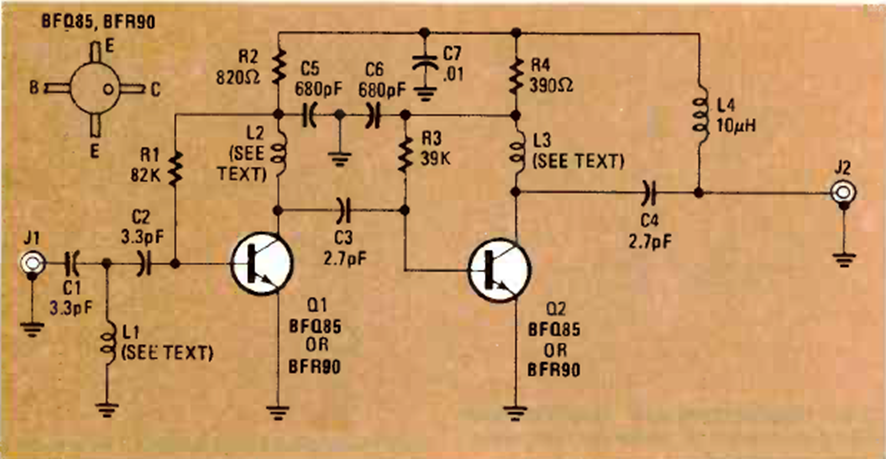

Created to serve as a booster for TV signals in the UHF band, this circuit was found in the March 192 Radio Electronics magazine. Assembly is critical, requiring a special board layout.
