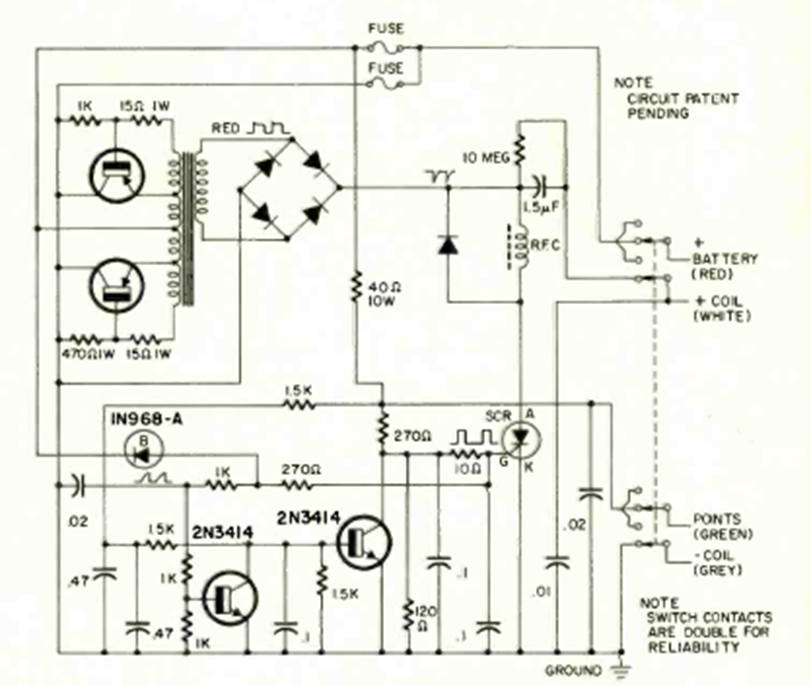

This is an improved circuit from the earlier version also found in the April 1972 Radio Electronics magazine. The power transistors must be provided with heat sinks.
| Clique na imagem para ampliar |
Advanced Capacitive Discharge Ignition (CB24183E)
- Details
- Written by: Newton C. Braga
