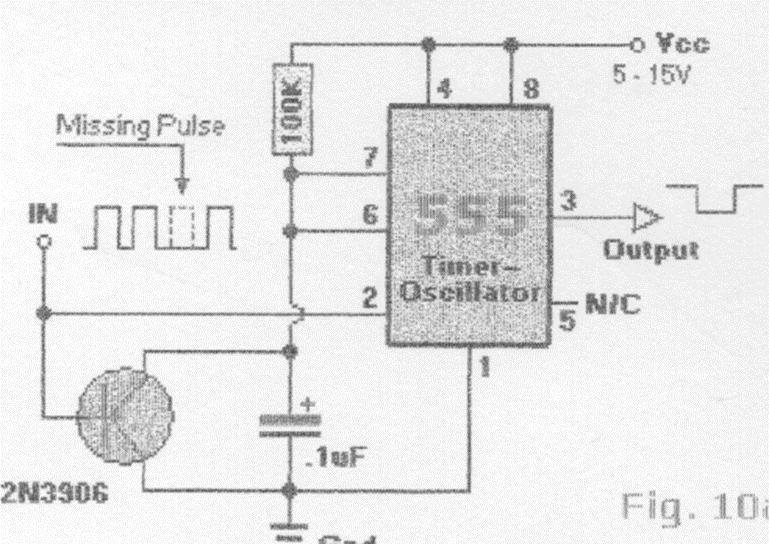

This circuit retriggers when a new pulse arrives. It does this by discharging the capacitor. The circuit is from a documentation from the 80s. The transistor can be any general purpose one.
| Clique na imagem para ampliar |
Retrigger for 555 (CB24455E)
- Details
- Written by: Newton C. Braga
