Synchronized Triac Switch (CB26127E)

Details
Written by: Newton C. Braga

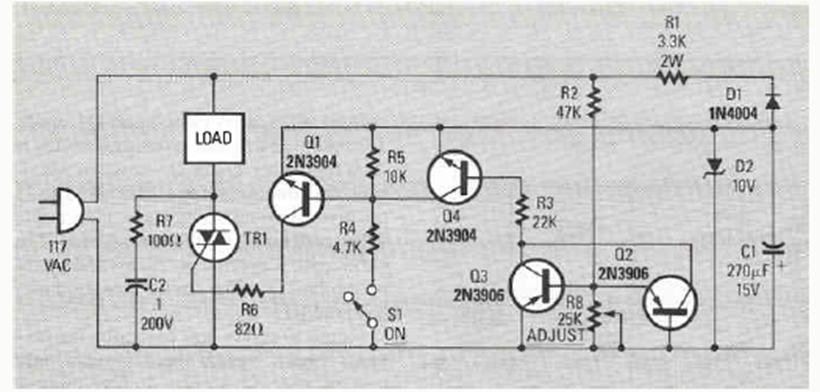

This zero-crossing circuit was found in the 1989 Radio Electronics Experimenter. The Triac must be controlled according to the load.
