Sewing Machine Motor Control (CB25103E)

Details
Written by: Newton C. Braga

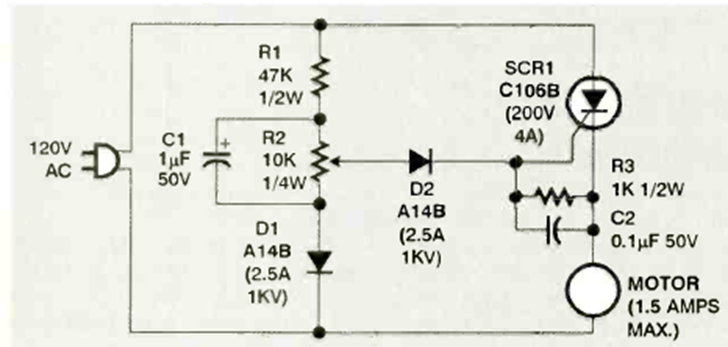

This simple SCR control was found in the December 1987 issue of Radio Electronics magazine. The circuit uses a well-known C106 but can be used in equivalents of the same series.
