Shield for triac (CB26126E)

Details
Written by: Newton C. Braga

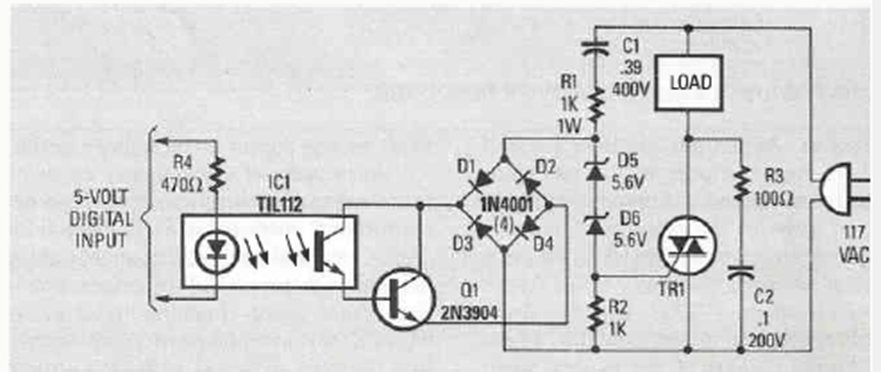

This shield with full-wave triggering was found in the Radio Electronics Experimenter magazine of 1989. The Triac must be according to the load that must be controlled.




| Clique na imagem para ampliar |
