Digital Wind Indicator (CB26031E)

Details
Written by: Newton C. Braga

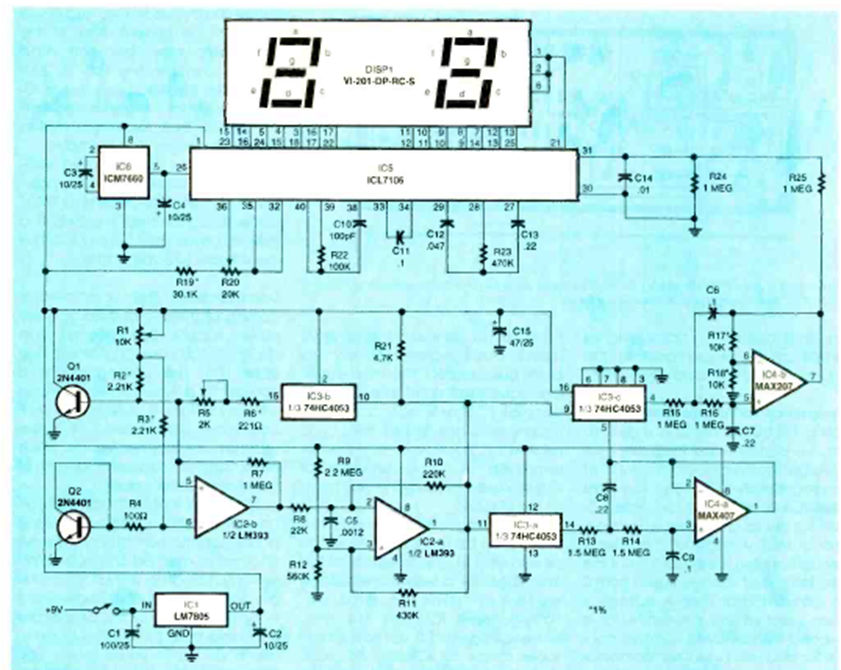

We found this circuit in an article in Electronics Now magazine from November 1997. The circuit uses two transistors to measure the temperature difference between them when one receives the wind.




| Clique na imagem para ampliar |
