Pink and White Noise Generator (CB26193E)

Details
Written by: Newton C. Braga

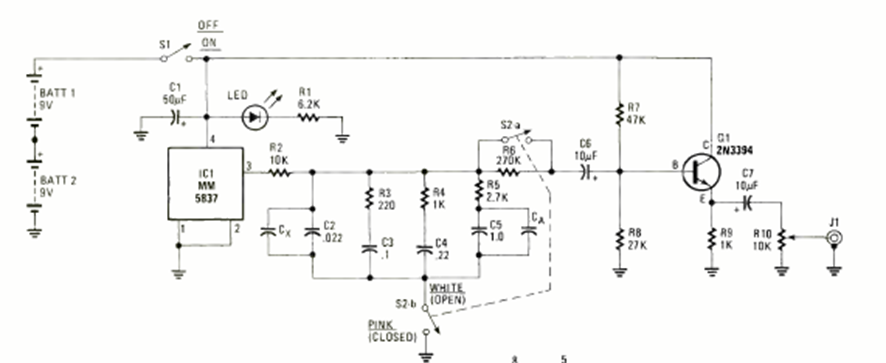

We found this circuit in the Electronics Experimenter Handbook 1983 edition. The circuit uses common components and has several features.




| Clique na imagem para ampliar |
