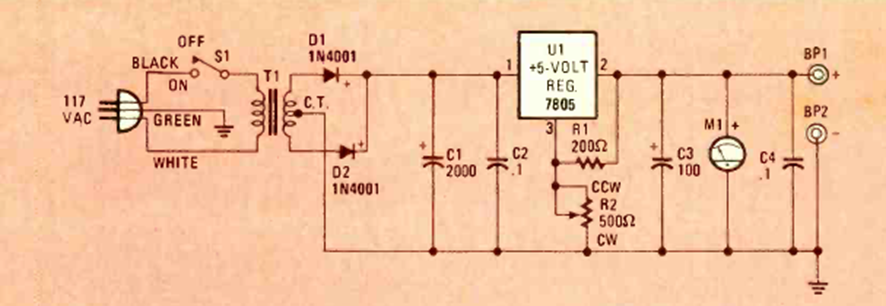

This power supply for TTL and CMOS circuits with a voltage of 5 to 15 V was found in the Special Projects edition of 1983 with a current of 1 A. The integrated circuit must be equipped with a heatsink.
| Clique na imagem para ampliar |
Adjustable power supply (CB26204E)
- Details
- Written by: Newton C. Braga
