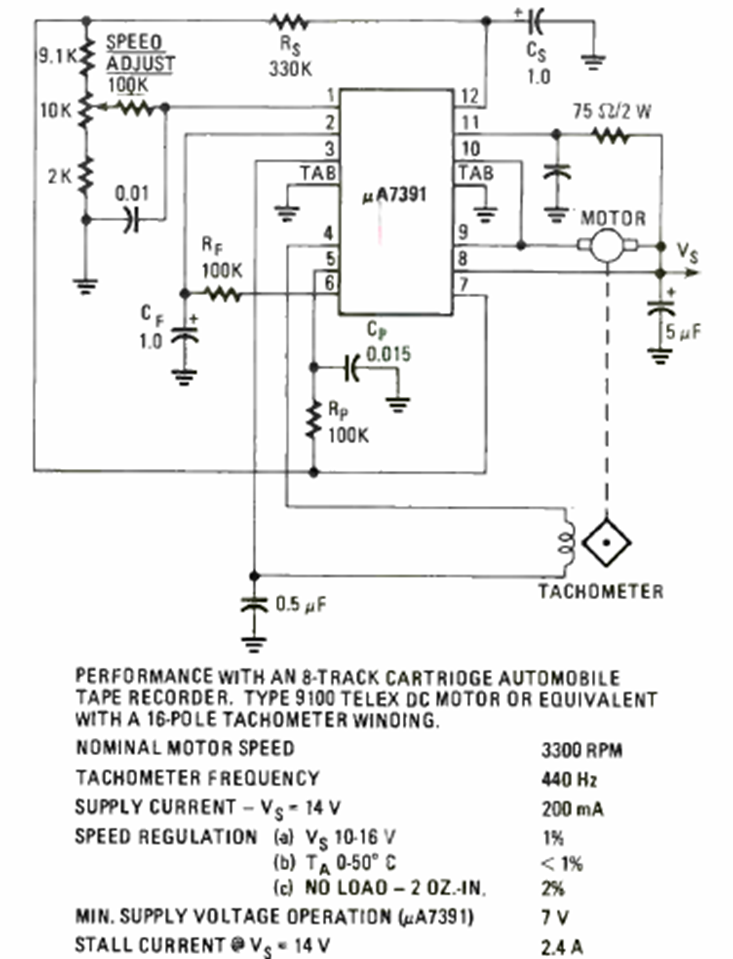

Motor Control uA7391 (CB26222E)

This motor speed control with tachometer sensor was found in the 1993 Radio Experimenter Special Projects. The maximum current is 2.4 A.

| Clique na imagem para ampliar |
