Triac Test (CB26105E)

Details
Written by: Newton C. Braga

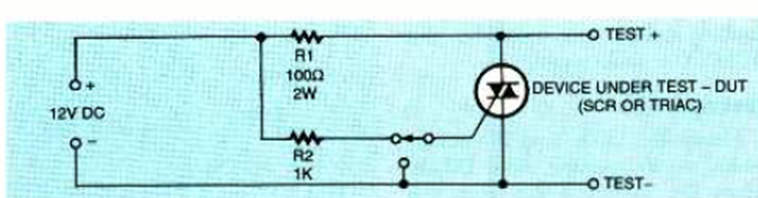

This circuit is used to test triacs. It can be connected in series with a resistive load such as an incandescent light bulb. The circuit was suggested by Electronics Now magazine in November 1999.
