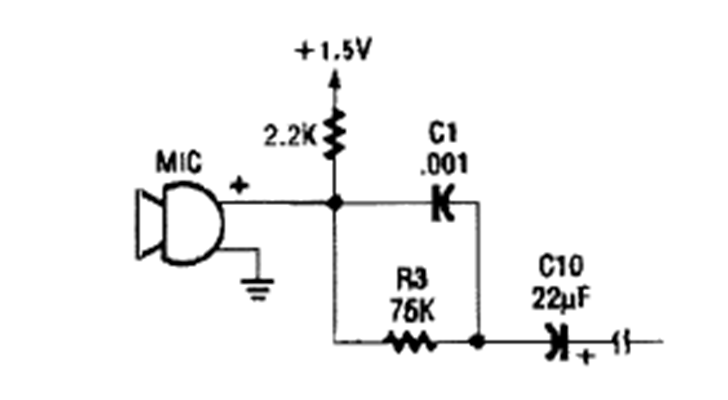

Preamplifier for electret (CB26249E)

This circuit allows the use of an electret microphone with a 1.5 V source. We found it in the Encyclopedia of Electronic Circuits volume 5 from 1995.

| Clique na imagem para ampliar |
