110 or 220V to 5V Power Supply (CB26064E)

Details
Written by: Newton C. Braga

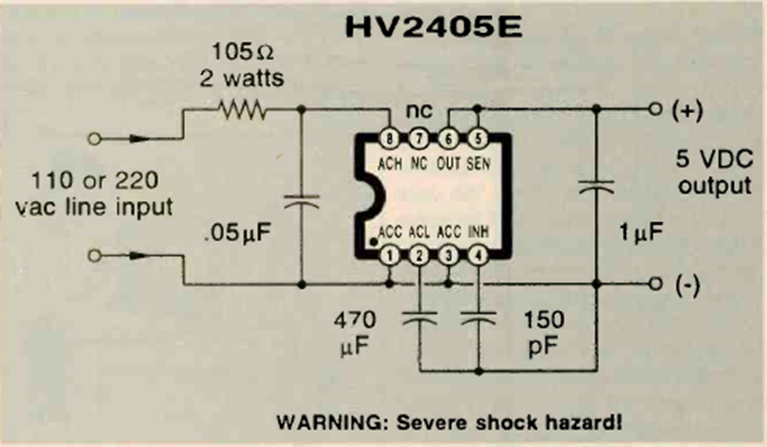

This transformerless low-current power supply circuit was found in the August 1998 issue of Electronics Now magazine. The circuit provides a few tens of milliamps and already includes the rectifier stage.




| Clique na imagem para ampliar |
