Pressure Gauge (CB26171E)

Details
Written by: Newton C. Braga

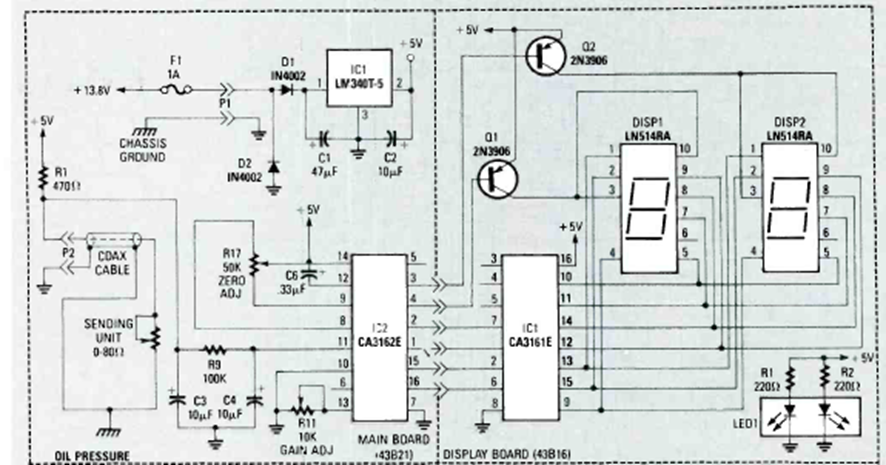

Using a sensor from the time, this circuit was found in the 1992 Radio Electronics Handbook magazine. The circuit uses a pair of integrated two-digit A/D converters.
