Motorcycle Headlight Modulator (CB26044E)

Details
Written by: Newton C. Braga

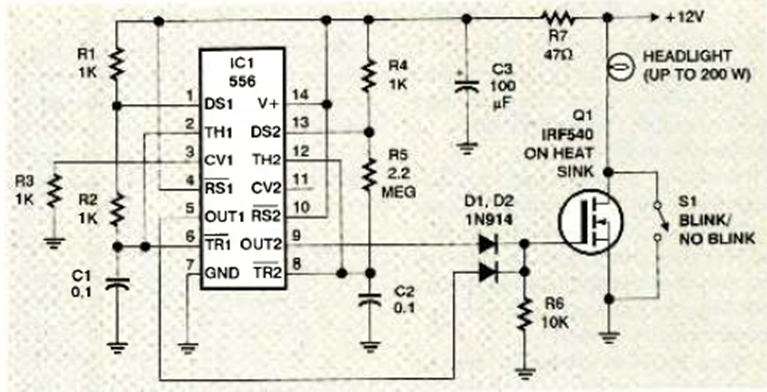

This circuit causes the powered lamp to fluctuate in brightness by 20% intensity. It can be used in other applications. We found it in the April 1998 Electronics Now magazine.




| Clique na imagem para ampliar |
