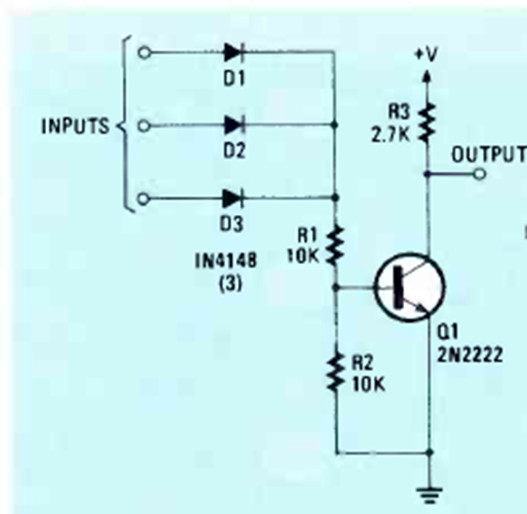

The figure shows how to implement a NOR gate with 3 inputs with common diodes and a common transistor. The circuit has a 5 V power supply to be compatible with TTL logic.
NOR gate with transistor (CB25036E)
- Details
- Written by: Newton C. Braga
The figure shows how to implement a NOR gate with 3 inputs with common diodes and a common transistor. The circuit has a 5 V power supply to be compatible with TTL logic.
