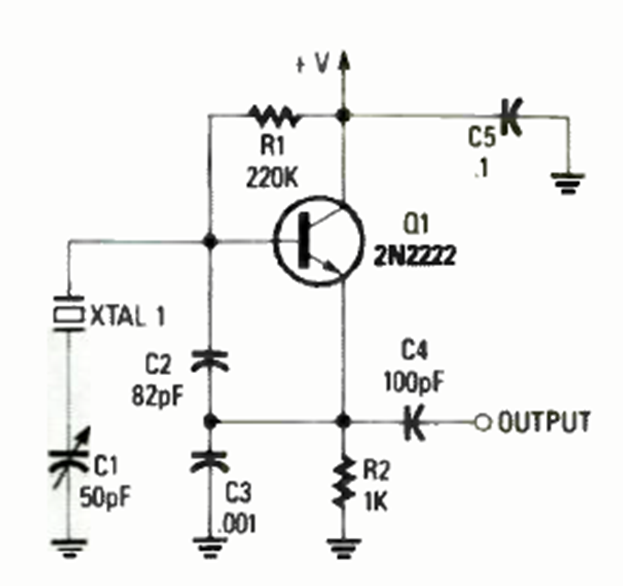

Found in the November 1986 issue of Radio Electronics magazine, this circuit can generate signals of several megahertz depending on the crystal. The circuit supports equivalent transistors.
Colpitts Oscillator (CB25008E)
- Details
- Written by: Newton C. Braga
