Immobilizer with two relays (CB24465E)

Details
Written by: Newton C. Braga

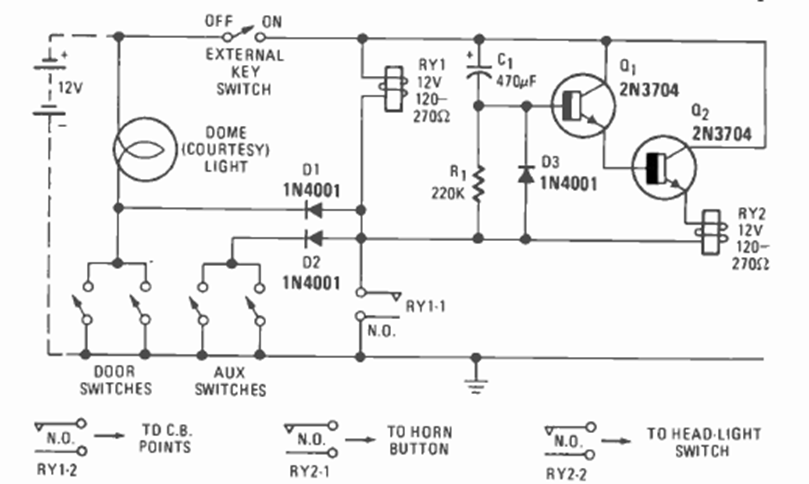

This immobilizer circuit for the car was found in the Radio Electronics magazine of December 1976. It has several sensors blocking the ignition system.
