Multitone Generator (CB25089E)

Details
Written by: Newton C. Braga

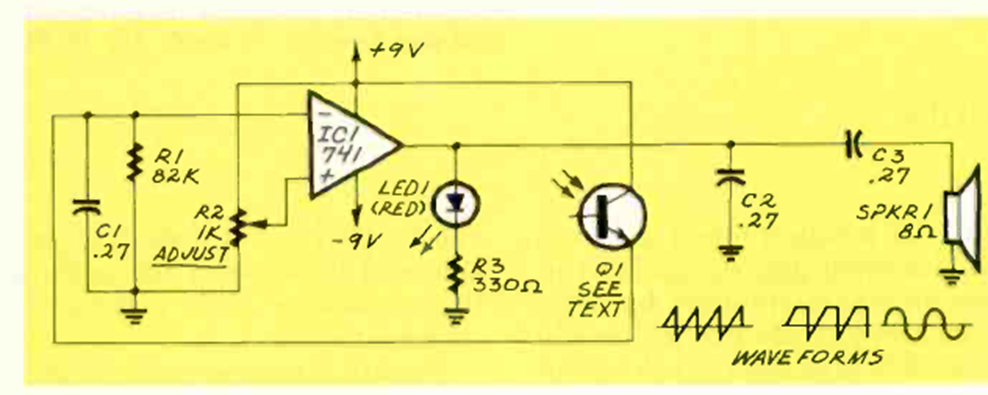

This small tone generator was found in the November 1987 issue of Radio Electronics magazine. The phototransistor is common and controls the sounds generated. The basic frequency is given by C1.




| Clique na imagem para ampliar |
