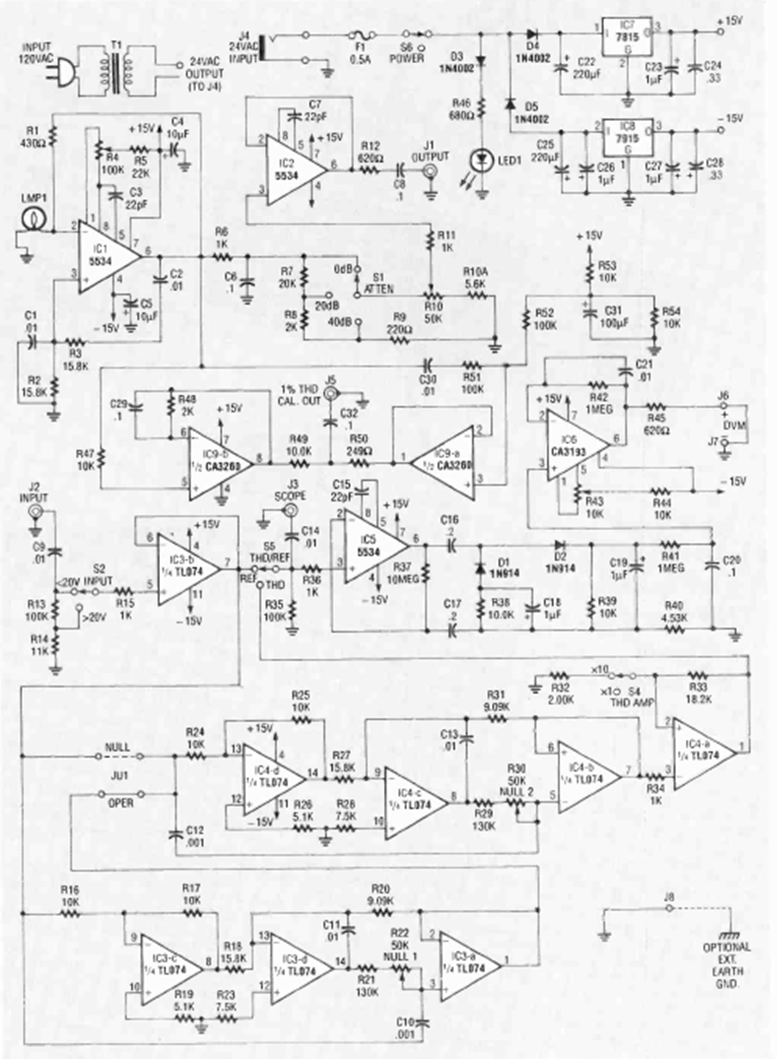

Harmonic Distortion Meter (CB26187E)

This complex circuit was found in the 1993 edition of the Electronics Experimenter's Handbook. Most of the components are still common today.

| Clique na imagem para ampliar |
