Sound circuit for flex switch (CB26245E)

Details
Written by: Newton C. Braga

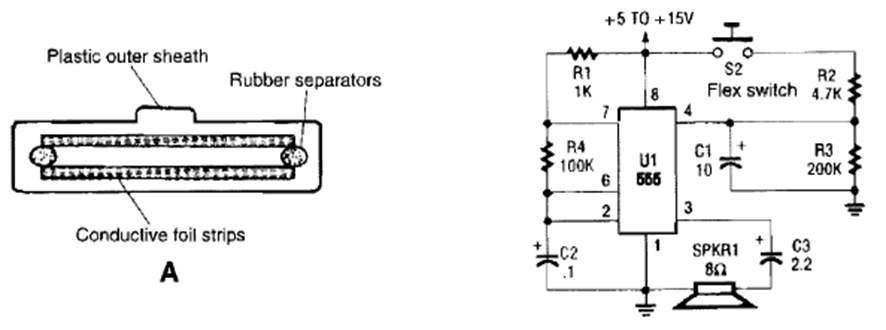

This circuit with pressure sensor was obtained from the Encyclopedia of Electronic Circuits volume 5 of 1995. Note the construction of the sensor with rubber and conductors.
