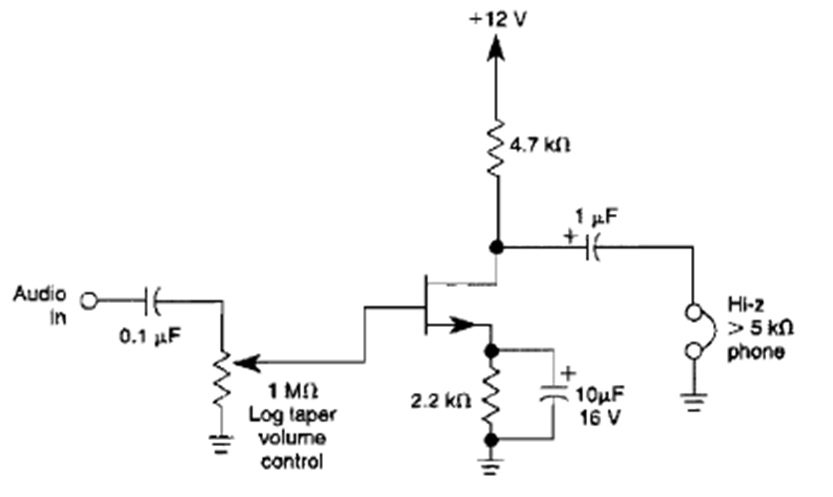

This high-impedance headphone circuit was found in a 1990s William Sheets. The power is low, but the high input impedance makes it useful for radio applications.
| Clique na imagem para ampliar |
Headphone Amplifier (CB26277E)
- Details
- Written by: Newton C. Braga
