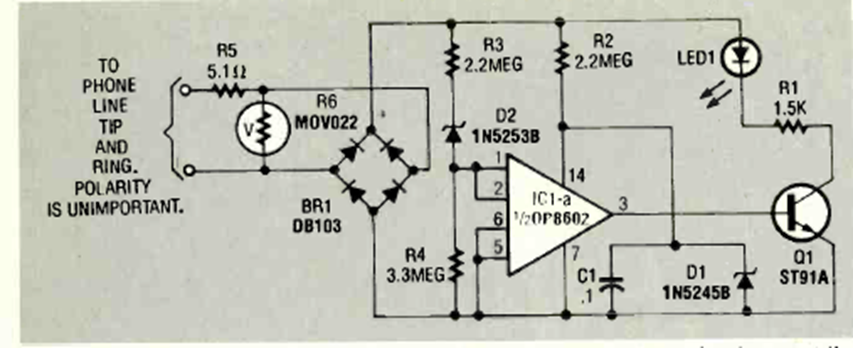

Telephone Line Monitor (CB25983E)

This analog telephone line extension circuit monitors when the line is in use. We found it in the November 1996 Electronics Now magazine.

| Clique na imagem para ampliar |
