5V to 12V x 50mA Converter (CB26060E)

Details
Written by: Newton C. Braga

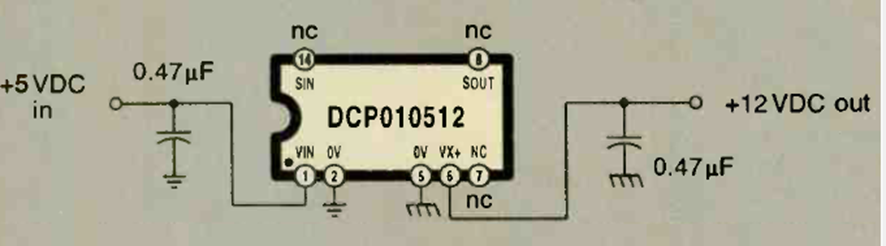

This circuit with the DCP010512 was found in the August 1998 issue of Electronics Now. The integrated circuit is not very common these days.
